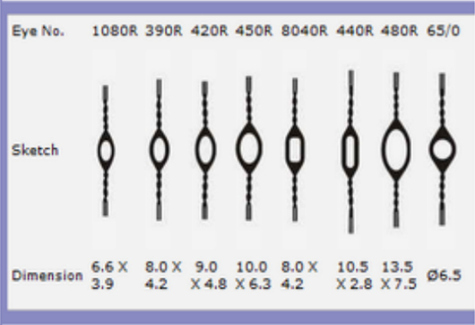

| Eye No | Sketch | Dimension (mm) |
|---|---|---|
| 1080R |  | 6.6 x 3.9 |
| 390R |  | 8.0 x 4.2 |
| 420R |  | 9.0 x 4.8 |
| 450R |  | 10.0 x 6.3 |
| 8040R |  | 8.0 x 4.0 |
| 440R |  | 10.5 x 2.8 |
| 480R |  | 13.5 x 7.5 |
| 65/0 |  | 6.5 x 6.5 |
| Specification | |
|---|---|
| Length | 300, 302, 305, 310 & 355 or required. (in mm) |
| Wire Size | 0.71 mm, 0.91 mm or required |

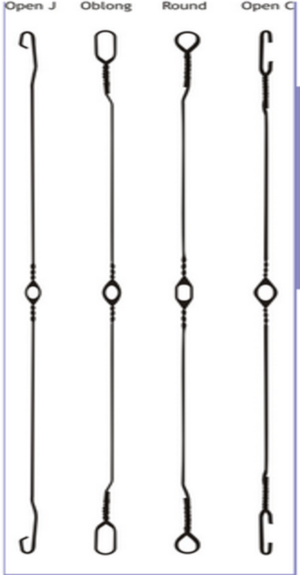

| End Loops | Open J, Oblong, Round and Open C. |
| Eye Location | In Centre or above centre. |
